We are Authorised Dealer, Supplier, Service Provider of Tapping Machines, and our set up is situated in Pune, Maharashtra, India.

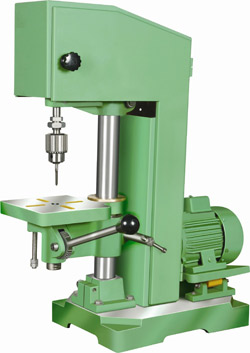

| Tapping Machine PT-5 | |
MODEL NO |
P T -5 |
| CAPACITY | |
Tapping in steel |
5 |
Tapping in C.I. |
7 |
SPINDLE |
|
No. of Spindle Speeds |
8 |
Range of Spindle Speeds |
590-1680 |
| WORKING RANGE | |
Max / Min.Dist. Between Spindle centre to Column face |
104 |
Max. Dist. between Spindle nose to table |
140 |
Diameter of Column |
46.80 |
Size of working Table |
168 x 168 |
Size of Base Plate |
380 x 250 |
| POWER | |
Drilling Head Motor |
0.5 H.P., 3 phase,1440 RPM |
| GENERAL | |
Weight of the Machine |
50 Kgs |
V-Belt Size |
A - 39 |
Overall dimensions of the machine |
780 x 580 x 250 |
Wooden case dimensions |
880 x 680 x 350 |

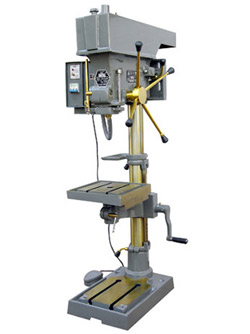

| Machine Capacity | HDT-25 mm | HDT-20 mm |
| Drilling in Steel | 25 | 20 |
| Tapping in Steel | 20 | 15 |
| Drilling in Casting | 28 | 25 |
| Tapping in Casting | 25 | 20 |
| Spindle | ||
| Spindle Taper | MT - 3 | MT - 2 |
| Spindle Travel | 173 | 125 |
| Working Range | ||
| Piller Dia | 87 | 74 |
| Piller Length | 1220 | 1016 |
| Distance From Spindle Center to Column Center | 1060 | 206 |
| Max. Distance From Spindle to Table | 600 | 785 |
| Base Working Surface | 280 X 350 | 235 x 280 |
| Speed | ||
| Speed Min/Max | 85-2800 | 85-2800 |
| Spindle Speed | 8 | 8 |
| Feeds | MANUAL | |
| Table Working Surface (Center Plate) | ||
| Table Diameter (Round) | 400 | 325 |
| Table Diameter (SQURE) | 400 | 275 x 275 |
| General | ||
| Power Drilling Motor | 2 HP | 1HP |
| Weight (APX) | 210 KG | 130 KG |
| V- Belt Section | B | A |
