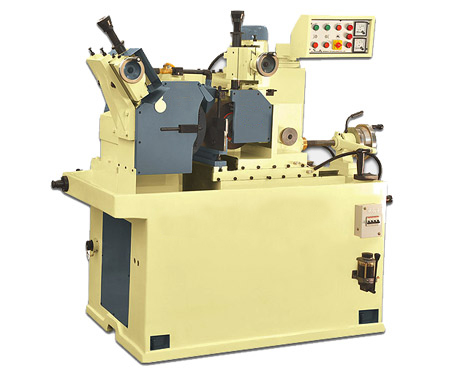

We are Authorised Dealer, Supplier, Service Provider of Centerless Grinder Mechanical Machines, Centerless Grinding Machines, Centerless Grinders, and our set up is situated in Pune, Maharashtra, India.
|
TECHNICAL SPECIFICATIONS
|
SALIENT FEATURES
| |
|---|---|---|
| Model | M100 |
High Grade Casting to ensure long life.
|
| Grinding Capacity ( in mm ) | 1 to 75 |
Designed for Both Through feed and In feed Grinding.
|
| Grinding Wheel Size ( in mm ) | 350 x 100x 127 |
Ultra Precision Bearings are used for supporting both heads.
|
| Grinding Wheel Speed : R.P.M | 1800/2000 |
Grinding Wheel duly balanced.
|
| Regulating Wheel Size ( in mm ) | 225 x 100 x 76.2mm |
Lubrication Pump Provide for adequate lubrication of slides.
|
| Regulating Wheel Speed: | 18x45x100 RPM |
High accuracy and excellent surface finish on work piece. |
| POWER | ||
| Grinding Wheel Head Motor | 7.5 HP | |
| (Optional) | 10 HP | |
| Regulating Wheel Head Motor | 1HP | |
| Coolant Pump Motor | 0.10 HP | |
| Power Supply | V/ac 415/Hz 50 Phase 3 | |
|
STANDARD ACCESSORIES
|
OPTIONAL ACCESSORIES
|
|---|---|
| Oil lubrication system for Slides. | AC Drive for Variable Speed of Regulating Wheel |
|
Grinding Wheel A60 L5 Fitted on flange.
|
Paper Band Filter With Magnetic Coolant Separator.
|
|
Regulating wheel fitted on flange.
|
Magnetic Coolant Separator.
|
|
Standard work rest blade 1 PC.
|
Ball Screw for Main Slide.
|
|
Two truing devices.
|
Micro feed for Precision work.
|
|
Dressing holders with diamond dressers for Grinding & Regulating Wheels.
|
Anti Vibration Pads.
|
|
Splash guard.
|
Motorized Oil Circulating Unit for Grinding Wheel Head.
|
|
Tool Kit & oil cane.
|
Spare Wheel Flanges.
|
|
Spanner for tde nut of Grinding wheel & Regulating Wheel.
|
Wheel Balance Stand with arbour.
|
|
Instruction Manual.
|
Automatic Loading/Unloading Attachment with Motorized
Conveyor system for throughfeed grinding. |
|
CNC Controller for In feed Grinding.
|
|
|
|
Auto In feed grinding with hydraulic system.
|
|
|
Ejector for throughfeed grinding.
|
|
Ejector for infeed grinding.
|
|
|
Motorized lubrication Pump for slides.
|
|
|
Spindle support with centre for grinding wheel head.
|
|
|
Automatic balancer for grinding wheel.
|
|
|
Semi automatic balancer for grinding wheel.
|
