We are Authorised Dealer, Supplier, Service Provider of Precision Surface Grinding Machines, Precision Surface Grinder, and our set up is situated in Pune, Maharashtra, India.

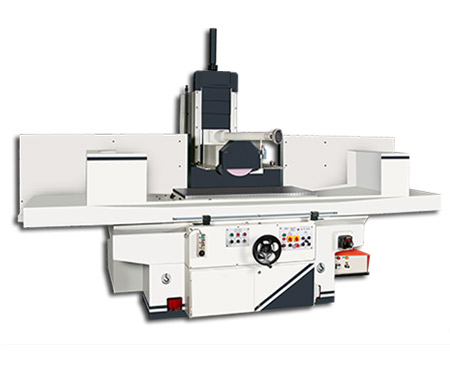

![Surface Grinder Precision Machines Surface Grinder Precision Machines](images/surface-grinder-precision-machines.jpg)
FULLY AUTO WITH PLC ALSO AVAILABLE ON REQUEST

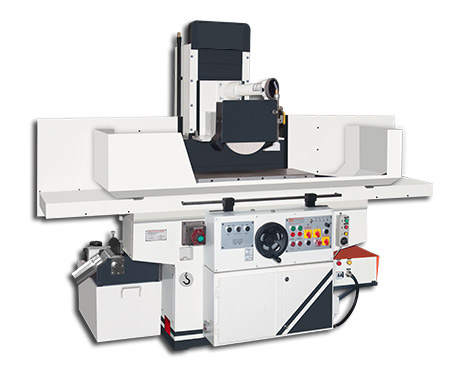

![Surface Grinder Precision Machines Surface Grinder Precision Machines](images/surface-grinder-precision-machines-2.jpg)
FULLY AUTO WITH PLC ALSO AVAILABLE ON REQUEST
Description | UOM | 5025 | 6030 | 7530 | 10030 |
---|---|---|---|---|---|
CAPACITY | |||||
Working Surface of the Table | mm | 500 x 250 | 600 x 300 | 750 x 300 | 1000 x 300 |
Max. Job size that can be Ground | mm | 500 x 250 | 600 x 300 | 750 x 300 | 1000 x 300 |
Max. Longitudinal Travel | mm | 550 | 650 | 800 | 1050 |
Max. Cross Traverse | mm | 280 | 330 | ||
Electro-Magnetic Chuck | mm | 500 x 250 | 600 x 300 | 750 x 300 | 1000 x 300 |
Max. Spindle Centre from Table Surface | mm | 525 | |||
Max. weight carrying capacity of the Table | Kgs. | 300 | 360 | 380 | 415 |
SPEEDS & FEEDS | |||||
Table Speed (Infinitely variable) | m/min | 5-30 | |||
Power Cross traverse | mm/min | 1200 | |||
Auto cross feed at each table reversal (Variable) | mm/stroke | 0.5 to 6 | |||
Power Elevation | mm/min | 200 | |||
Vertical feed graduation | mm | 0.002 | |||
Cross feed Graduation | mm | 0.01 | |||
GRINDING HEAD | |||||
Speed of Grinding Spindle | Rpm | 2800 | 1400 | ||
Size of Grinding Wheel (D x W x B) | mm | 200 X 20 X 50.8 | 300 X 25 X 76.2 (Optional - 300 x 40 x 76.2) | ||
Power of Grinding Wheel | H.P / Kw | 3 / 2.2 | 5 / 3.7 | ||
HYDRAULIC SYSTEM | |||||
Working Pressure | Kg/cm^2 | 12 | |||
Power Pack | Solenoid operated hydraulic Power Pack with facility to have soft table reversal. | ||||
POWER OF HYDRAULIC PUMP | |||||
Hydraulic Motor | H.P / Kw | 2 / 1.47 | |||
Tank Capacity | Liters | 120 | |||
GENERAL | |||||
Total Power | H.P / Kw | 7 / 5.2 | 9 / 6.7 | ||
Net Weight of Machine (Apporox.) | Kgs. | 1800 | 2250 | 2350 | 2650 |
Gross Weight of Machine (Apporox.) | Kgs. | 2400 | 2850 | 2950 | 3350 |
Description | UOM | 6040 | 8040 | 10040 | 10050 | 15050 |
---|---|---|---|---|---|---|
CAPACITY | ||||||
Working Surface of the Table | mm | 600 x 400 | 800 x 400 | 1000 x 400 | 1000 x 500 | 1500 x 500 |
Max. Job size that can be Ground | mm | 600 x 400 | 800 x 400 | 1000 x 400 | 1000 x 500 | 1500 x 500 |
Max. Longitudinal Travel | mm | 650 | 850 | 1050 | ||
Max. Cross Traverse | mm | 440 | 550 | |||
Electro-Magnetic Chuck | mm | 600 x 400 | 800 x 400 | 1000 x 400 | 1000 x 500 | 1500 x 500 |
Max. Spindle Centre from Table Surface | mm | 525 | 525(Optional-750) | |||
Max. weight carrying capacity of the Table | Kgs. | 390 | 440 | 460 | 580 | 820 |
SPEEDS & FEEDS | ||||||
Table Speed (Infinitely variable) | m/min | 5-30 | ||||
Power Cross traverse (Variable) | mm/min | 120 to 1200 | ||||
Auto cross feed at each table reversal (variable) | mm/stroke | 1 to 25 | ||||
Power Elevation | mm/min | 240 | ||||
Vertical Feed Graduation | mm | 0.002 | ||||
Cross Feed Graduation | mm | 0.01 | ||||
GRINDING HEAD | ||||||
Speed of Grinding Spindle | Rpm | 1400 | ||||
Size of Grinding Wheel (D x W x B) | mm | 300 X 40 X 76.2 | 300 X 50 X 76.2 | 350 X 50 X 127 | ||
Power of Grinding Wheel | H.P / Kw | 5 / 3.7 | 7.5 / 5.5 | |||
HYDRAULIC SYSTEM | ||||||
Working Pressure | Kg/cm^2 | 14 | ||||
Power Pack | Solenoid operated hydraulic Power Pack with facility to have soft table reversal. | |||||
POWER OF HYDRAULIC PUMP | ||||||
Hydraulic Motor | H.P /Kw | 3 / 2.2 | 5 / 3.7 | |||
Tank Capacity | Liters | 150 | 200 | |||
GENERAL | ||||||
Total Power | H.P / Kw | 11 / 8 | 15/11 | |||
Net Weight of Machine (Apporox.) | Kgs. | 3800 | 4000 | 4200 | 4800 | 6200 |
Gross Weight of Machine (Apporox.) | Kgs. | 4450 | 4650 | 4950 | 5600 | 7150 |
