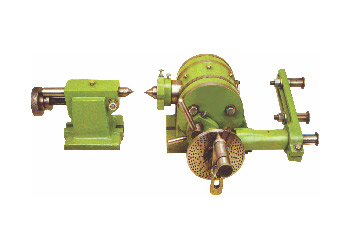

Dividing Heads

We are Authorised Dealer, Supplier, Service Provider of Dividing Heads, Universal Dividing Heads, and our set up is situated in Pune, Maharashtra, India.


Specifications
Size in Inch 4.1\2 5.1\2 6.1\2 7.1\2 8.1\2 to 12.1\2
Centre Height MM 115 140 165 190
Worm Gear Ratio 1:40 1:40 1:40 1:40 On Demand
Spindle Bore in MM 20 32 38 to 75 55 to 75 "
Spindle Taper Digree 9 9 9 9 "
Overall Height Vertical Position in MM 215 265 325 360 "
Length of Base in MM 175 240 265 290 "
Width in MM 150 175 215 230 "
Width in Kgs 65 102 127 140 "
Gear Set D. P. 14 14 12 12 "
Set Of Gears 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100
Number of Indixing Side A 11, 16, 19, 25, 37, 41, 49
Side B 13, 17, 18, 27, 33, 43, 51
7, 13, 16, 19, 20, 23, 27, 31, 33, 39, 47, 53
9, 11, 15, 17, 18, 21, 25, 29, 37, 41, 49, 51
