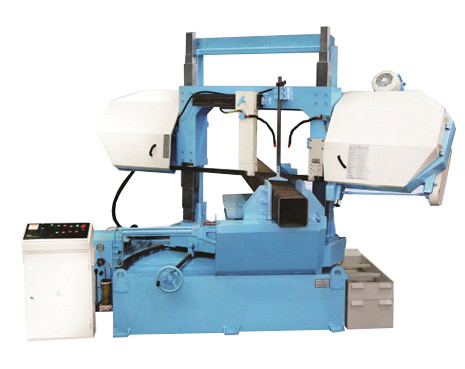

We are Authorised Dealer, Supplier, Service Provider of Miter / Mitre Cutting Bandsaw Machines, and our set up is situated in Pune, Maharashtra, India.
Specification
- Saw head movement on heavy duty LM Guide The Swivel is directly above the intersection of the saw blade and the fix vice jaw so that there is a Datum
- Measuring point which does no change with the miter angle
- Swiveling cutting head and stationary work table with easy cutting angle setting
- Suitable to cut angles in range of 90 degree to 45 degree
- Accurate angular movement.(least count-0.1 degree)
- Steeples cutting pressure regulation through weight of the heavy and rigid saw frame and the fine tuning pending on cross - section by hydraulic damping cylinder
- Rapid lowering of the saw frame via button until material edge
- Free-standing control panel
- Precise saw blade carbide roller guidance
- Integrated chip collection tray
| Specifications | BSAM-241 DCM (Mitering) | BSAM-341 DCM (Mitering) | BSAM-421 DCM (Mitering) | BSAM-601 DCM (Mitering) |
| Cutting Capacity Round & Square 45o degree Round & Square 90o degree |
240 mm 240 mm |
340 mm 340mm |
450mm 450mm |
610mm 610mm |
| Cutting Capacity (w x h) mm Rectangle 45o degree Rectangle 90o degree |
240 x 240 300 x 240 |
340 x 340 400 x 340 |
450 x 450 500 x 450 |
610 x 610 700 x 610 |
| Blade Dimensions (mm) | 37060 x 27 x 0.9 | 5450 x 34 x 1.1 | 6270 x 41 x 1.1 | 7860 x 54 x 1.6 |
| Blade Linear Speed (mtr / min ) | 20/ 30 / 40 / 50 / 75 | 20 / 30 / 40 / 50 / 75 | 20 / 30 / 40 / 50 / 75 | 20/ 30 / 40 / 50 / 75 |
| Power Req. (kw / h.p) Saw Drive | 2.2 / 3.0 / 1440 RPM | 3.7 / 5.0 / 1440RPM | 3.7 / 5.0 / 1440 RPM | 5.5 / 7.5 / 1000 RPM |
| (440 V AC, 50 Hz, 3 Phase) Hydraulic Drive | 0.75 / 1.0 / 1440 RPM | 0.75 / 1.0 / 1440 RPM | 0.75 / 1.0 / 1440 RPM | 1.1 / 1.5 / 1440 RPM |
| Coolant Pump | 0.12 / 0.15 / 2800 RPM | 0.12 / 0.15 / 2800 RPM | 0.12 / 0.15 / 2800 RPM | 0.12 / 0.15 / 2800 RPM |
| Wire Brush Motor | 0.18 / 0.25 / 1440 RPM | 0.18 / 0.25 / 1440 RPM | 0.18 / 0.25 / 1440 RPM | 0.18 / 0.25 / 1440 RPM |
| Hydraulic Tank Capacity (Ltr) | 60 | 60 | 60 | 80 |
| Coolant Tank Capacity (Ltr) | 60 | 60 | 60 | 80 |
| Apx. Dimensions (L x W x H) | 2.2 x 1.1 x 1.5 | 2.5 x 1.3 x 1.8 | 3 x 1.5 x 2 | 3.5 x 1.7 x 2.2 |
| Apx. Weight (kg) | 1200 | 1500 | 1800 | 2300 |
