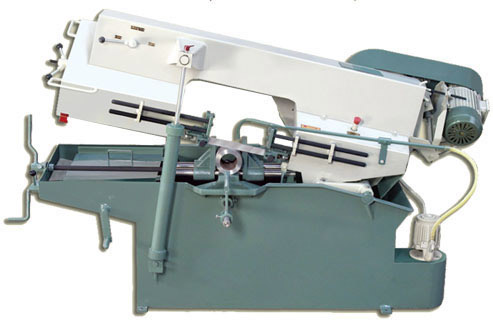

We are Authorised Dealer, Supplier, Service Provider of Horizontal Bandsaw Hinged, Horizontal Bandsaw Hinged Machines and our set up is situated in Pune, Maharashtra, India.
Specification |
BH-8 |
BH-10 |
BH-12 |
BH-14 |
BH-16 |
BH-18 |
Cutting Capacity (Unit) |
||||||
Round (mm) |
205 |
250 |
315 |
350 |
400 |
450 |
Square (mm) |
175 x 175 |
225 x 225 |
275 x 275 |
300 x 300 |
400 x 400 |
450 x 450 |
Rectangle (mm) |
220 x 110 / 200 x 150 |
250 x 175 |
300 x 250 |
400 x 200 |
450 x 350 |
500 x 350 |
Blade Dimensions (mm) |
3000 x 27 x 0.9 |
3300 x 27 x 0.9 |
3760 x 27 x 0.9 |
4100 x 34 x 1.1 |
4420 x 34 x 1.1 |
4570 x 34 x 1.1 |
Power Req. (440 V AC, 50Hz) |
1.0 HP |
1.5 HP |
2.0 HP |
2.0 HP |
2.0 HP |
2.0 HP |
Dimensions (L x W x H) mtr. |
1.7 x 0.6 x 0.9 |
1.8 x 0.7 x 1 |
2.4 x 0.9 x 1.1 |
2.6 x 0.9 x 1.1 |
2.7 x 0.9 x 1.2 |
2.8 x 0.9 x 1.2 |
Net Weight (kg) |
320 |
375 |
760 |
820 |
900 |
950 |
Stadard Features & Accessories
- Complete with electrical ie., Saw drive electric motor, coolant pump, On off contacter with push buttons
- V-belt pulleys with V-belt
- Job stopper
- Oil filled gearbox & hydraulic cylinder
- Friction type chip removal wire brush
- No. 1 Bi-metalic blade
Optional Accessories
- Chip removal wire brush
- Bi-metal bandsaw blades
- Carbon steel bandsaw blades
- Job roller stand
- Mechanical job feeder unit
- Electra mechanical cutting feed regulator cum rapid auto lifter
