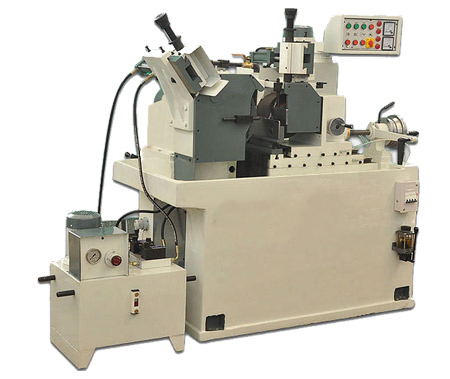

We are Authorised Dealer, Supplier, Service Provider of Centerless Grinder Hydraulic Machines, and our set up is situated in Pune, Maharashtra, India.
Salient Features
- High Grade Casting to ensure long life.
- Designed for Both Through feed and In feed Grinding.
- Ultra Precision Bearings are used for supporting both heads.
- Grinding Wheel duly balanced.
- Lubrication Pump Provide for adequate lubrication of slides.
- High accuracy and excellent surface finish on work piece.
|
TECHNICAL SPECIFICATIONS
| |||||
|---|---|---|---|---|---|
| Model | H50 | H100 | H150 | H200 | H250 |
| Grinding Capacity ( in mm ) | 1 to 40 | 1 to 75 | 2 to 100 | 2 to 160 | 2 to 160 |
| Grinding Wheel Size ( in mm ) | 350 x 50x 127mm | 350 x 100x 127 | 400x150x203.2 | 500x200x305 | 500 x 250x 305 |
| Grinding Wheel Speed : R.P.M | 1800/2000 | 1800/2000 | 1600 to 1800 | 1200 | 1200 |
| Regulating Wheel Size ( in mm ) | 225 x 50 x 76.2 | 225 x 100 x 76.2mm | 250x150x110 | 300x200x127 | 305 x 250 x 127 |
| Regulating Wheel Speed: | 0-200 RPM |
18x45x100 RPM | 18x45x100 RPM | Variable with AC Drive | Variable with ac drive |
| POWER | |||||
| Grinding Wheel Head Motor | 2 HP | 7.5 HP | 10 HP | 15 HP | 20 HP |
| (Optional) | 3 HP | 10 HP | - | - | - |
| Regulating Wheel Head Motor | 1HP | 1HP | 1HP | 2 HP. | 2 HP |
| Coolant Pump Motor | 0.10 HP | 0.10 HP | 0.10 HP | 0.18 HP | 0.18 HP |
| Power Supply | V/ac 415/Hz 50 Phase 3 | V/ac 415/Hz 50 Phase 3 | V/ac 415 | V/ac 415 | V/ac 415 |
|
STANDARD ACCESSORIES
|
OPTIONAL ACCESSORIES
|
|---|---|
| Hydraulic dressing system for grinding and regulating wheel. | AC Drive for Variable Speed of regulating Wheel |
|
Oil lubrication system for Slides.
|
Paper Band Filter With Magnetic Coolant Separator.
|
|
Grinding Wheel A60 L5 Fitted on flange.
|
Magnetic Coolant Separator.
|
|
Regulating wheel fitted on flange.
|
Ball Screw for Main Slide.
|
|
Standard work rest blade 1 PC.
|
Micro feed for Precision work.
|
|
Two truing devices.
|
Anti Vibration Pads.
|
|
Dressing holders with diamond dressers for Grinding & Regulating Wheels.
|
Motorized Oil Circulating Unit for Grinding Wheel Head.
|
|
Splash guard.
|
Spare Wheel Flanges.
|
|
Tool Kit & oil cane.
|
Wheel Balance Stand with arbour.
|
|
Spanner for the nut of Grinding wheel & Regulating Wheel.
|
Automatic Loading/Unloading Attachment with Motorized
Conveyor system for throughfeed grinding. |
|
Instruction Manual.
|
CNC Controller for In feed Grinding.
|
|
Auto Infeed grinding with hydraulic system.
|
|
|
|
Ejector for throughfeed grinding.
|
|
Ejector for in feed grinding.
|
|
|
Motorized lubrication Pump for slides.
|
|
|
Spindle support with centre for grinding wheel head.
|
|
|
Automatic balancer for grinding wheel.
|
|
|
Semi automatic balancer for grinding wheel.
|
