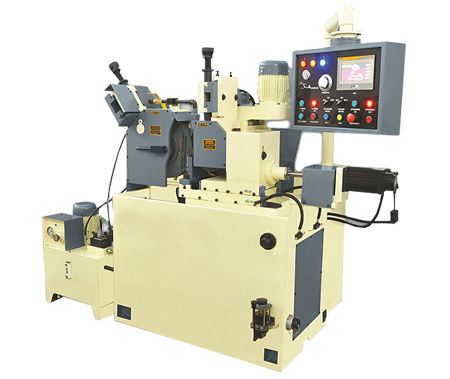

We are Authorised Dealer, Supplier, Service Provider of Centerless Grinder CNC Machines, CNC Centreless Grinding Machines, Centerless Grinders, and our set up is situated in Pune, Maharashtra, India.
Salient Features
- High Grade Casting to ensure long life.
- Designed for Both Through feed and In feed Grinding.
- Ultra Precision Bearings are used for supporting both heads.
- Grinding Wheel duly balanced.
- Lubrication Pump Provide for adequate lubrication of slides.
- High accuracy and excellent surface finish on work piece.
|
TECHNICAL SPECIFICATIONS
| |||||
|---|---|---|---|---|---|
| Model | H50 | NC100 | NC150 | NC200 | NC250 |
| Grinding Capacity ( in mm ) | 1 to 40 | 1 to 75 | 2 to 100 | 2 to 160 | 2 to 160 |
| Grinding Wheel Size ( in mm ) | 350 x 50x 127mm | 350 x 100x 127 | 400x150x203.2 | 500x200x305 | 500 x 250x 305 |
| Grinding Wheel Speed : R.P.M | 1800/2000 | 1800/2000 | 1600 to 1800 | 1200 | 1200 |
| Regulating Wheel Size ( in mm ) | 225 x 50 x 76.2 | 225 x 100 x 76.2mm | 250x150x110 | 300x200x127 | 305 x 250 x 127 |
| Regulating Wheel Speed: | 0-200 RPM |
18x45x100 RPM | 18x45x100 RPM | Variable with AC Drive | Variable with ac drive |
| POWER | |||||
| Grinding Wheel Head Motor | 2 HP | 7.5 HP | 10 HP | 15 HP | 20 HP |
| (Optional) | 3 HP | 10 HP | - | - | - |
| Regulating Wheel Head Motor | 1HP | 1HP | 1HP | 2 HP. | 2 HP |
| Coolant Pump Motor | 0.10 HP | 0.10 HP | 0.10 HP | 0.18 HP | 0.18 HP |
| Power Supply | V/ac 415/Hz 50 Phase 3 | V/ac 415/Hz 50 Phase 3 | V/ac 415 | V/ac 415 | V/ac 415 |
|
STANDARD ACCESSORIES
|
OPTIONAL ACCESSORIES
|
|---|---|
|
Servo motor and drive for movement of slides.
|
Paper 8 and Filter with magnetic coolent seprator |
|
VFD for the variable speed of regulating wheel.
|
Only magnetic coolant seprator |
|
HMI 7" for display and programming
|
Wheel balance stand with arbour |
|
Micro hand wheel for precision movement.
|
Spare wheel flanges |
|
JOG+/-
|
Foot Switch |
|
Hydraulic dressing system for both wheels
|
Anti vibration pads |
|
High precision ground ball screw for slide movement
|
|
|
Standard work rest blade.
|
|
|
Grinding wheel A60L5 fitted on flange after duly balanced.
|
|
|
Regulating wheel fitted on flange
|
|
|
Splash guards
|
|
|
Dressing Holders with diamond dresser for both the wheels
|
|
| Tool kit with instruction manual. | |
| Rotatable panel with complete electrical. |
