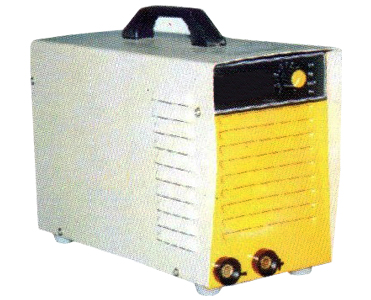

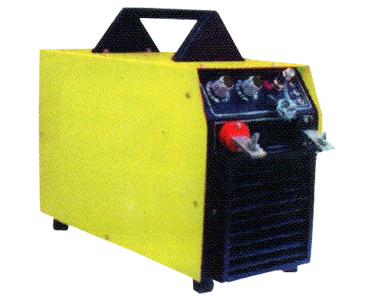

We are Authorised Dealer, Supplier, Service Provider of Inverter Based Arc Weldings, Inverter Based ARC Welding Machines, Inverter ARC Welding Machines, and our set up is situated in Pune, Maharashtra, India.
| MODEL |
160 |
220 |
300 |
400 |
| Input Supply |
230 V/15% |
415 V/15% |
415 V/15% |
415 V/15% |
| Phase / Freq. |
1/50 - 60 Hz |
3/50 - 60 Hz |
3/50 - 60 Hz |
3/50 - 60 Hz |
| Max. Installed Power |
4.4 KW / 6 HP |
6.4 KW / 9 HP |
11 KW / 15 HP |
16.3 KW / 22 HP |
| Input KVA @ 600 % |
4.8 |
7.0 |
11.9 |
17.8 |
| @ 100 % |
3.7 |
5.4 |
9.2 |
13.7 |
OUTPUT
| OCV - DC |
75-85 |
75-85 |
75-85 |
75-85 |
| Current Range Amps |
3-160 |
5-220 |
5-300 |
5-400 |
| Current @ 600 % |
160 |
220 |
300 |
400 |
| @ 100 % |
124 |
170 |
231 |
308 |
| Dynamic Arc Force |
0-100% |
0-100% |
0-100% |
0-100% |
| Pulse Frequency Hz |
- |
1-10 |
1-10 |
1-10 |
| Class of Protection |
IP 23 |
IP - 23 |
IP 23 |
IP 23 |
OTHER
| Class of Insulation |
H |
H |
H |
H |
| Cooling |
Forced Air |
Forced Air |
Forced Air |
Forced Air |
| Dimensions |
|
|
|
|
| Wx L x H in mm. |
195 x 430 x 270 |
210 x 500 x 320 |
260 x 680 x 360 |
260 x 680 x 360 |
| Weight in Kgs. |
13 |
19 |
33 |
35 |
