Surface Grinder CNC Machines

  1. Home
  2. Surface Grinder CNC Machines

We are Authorised Dealer, Supplier, Service Provider of Surface Grinder CNC Machines, CNC Surface Grinders, and our set up is situated in Pune, Maharashtra, India.

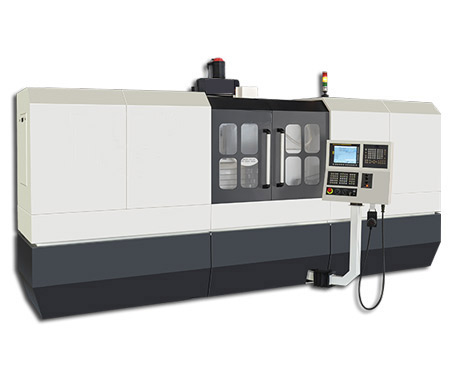

Surface Grinder CNC Machines

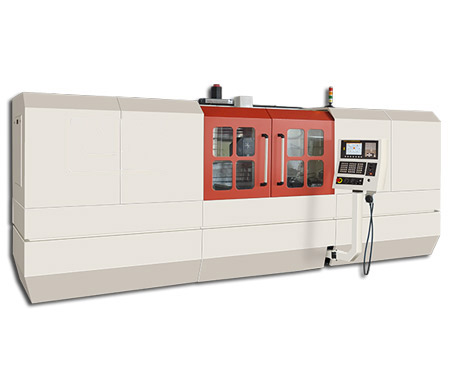

Surface Grinder CNC Machines


DescriptionUOMCNC 3X 10060CNC 3X 15060CNC 3X 20060CNC 3X 20080CNC 3X 30080
CAPACITY
Table size mm 1000 x 600 1500 x 600 2000 x 600 2000 x 800 3000 x 800
Electro Magnetic Chuck size mm 1000 x 600 1500 x 600 2000 x 600 2 Nos. of 1000 x 800 2 Nos. of 1500 x 800
Max. Grinding Length that can be ground mm 1000 1500 2000 3000
Max. Grinding width that can be ground mm 600 800
Max. Table load Kgs. 700 1100 1250 1800 2300
T-Slots mm x qty. 16 x 3 18 x 3
X-AXIS
Longitudinal Table Travel mm 1050 1550 2100 3100
Rapid Feed Rate m/min. 0.5-25
Least Input Increment mm 0.001
Auto In-Feed   By CNC Data
Y-AXIS
Distance from Spindle centre to Table mm 525 (Optional -750) 750
Rapid Feed Rate mm/min. 5000
Least Input Increment mm 0.001
Auto In-Feed   By CNC Data
Z-AXIS
Cross Travel mm 650 850
Rapid Feed rate mm/min. 5000
Least Input Increment mm 0.001
Auto In-Feed   By CNC Data
SPINDLE
Grinding Spindle Wheel Power Rating h.p / kw 7.5 / 5.5 10 / 7.5 15 / 11
Grinding spindle speed Rpm 1440
Standard Grinding wheels (D x W x B) mm 350 x 50 x 127 400 x 65 x 127 400 x 80 x 127 500 x 80 x 127
GENERAL
Positioning Accuracy Of All Three Axes As Per VDI 3441
Repeatability Accuracy Of All Three Axes As Per VDI 3441
Total Power H.P / Kw 19 / 14 25 / 19 28 / 21 36 / 27
Net weight of Machine (Approx.) Kgs. 5800 7350 8100 10900 14200
Gross weight of Machine (Approx.) Kgs. 6650 8200 9250 12100 15700

DescriptionUOMCNC 2X 5025CNC 2X 7530CNC 2X 8040CNC 2X 10050CNC 2X 15050
CAPACITY
Table size mm 500 x 250 750 x 300 800 x 400 1000 x 500 1500 x 500
Electro Magnetic Chuck size mm 500 x 250 750 x 300 800 x 400 1000 x 500 1500 x 500
Max. Grinding Length that can be ground mm 500 750 800 1000 1500
Max. Grinding width that can be ground mm 250 300 400 500 500
Max. Table load kgs. 220 300 375 500 950
T-Slots mm x qty. 14 x 1 12 x 3
X-AXIS
Longitudinal Table Travel mm 550 800 850 1050 1550
Max. Table Travel Speed mtrs. / min. 28
Hydraulic Powerpack Motor Rating H.P. / Kw 2 / 1.5
Working Pressure Kg/cm2 10
Hytdraulic Power Pack Tank Capacity Liters 120 150
Powerpack   Solenoid operated hydraulic power pack with facility to have soft table reversals.
Y-AXIS
Rapid Feed Rate mm/min. 3000
Manual Feed Rate Per Turn mm 0.1
Least Input Increment mm 0.001
Auto In-Feed   By CNC Data
Max. Height from Table (Without Magnetic Chuck) to Centre of Spindle mm 525
Max. Height from Table (With Magnetic Chuck) to Centre of Spindle mm 445
Max. Height Component that can be ground placing on Magnetic chuck with new Grinding Wheel mm 300 275
Max. Height Component that can be ground placing on Table without Magnetic chuck with New Grinding Wheel mm 380 355
Z-AXIS
Cross Travel mm 270 330 455 555
Auto Cross Feed at Each Talble Reversal mm/stroke 0.01 10
Manual Feed Rate per Turn mm 0.1
Rapid Feed Rate mm/min. 3000
Least Input Increment mm 0.001
Auto In-Feed   By CNC Data
SPINDLE
Grinding Spindle Wheel Power Rating H.P / Kw 5/3.7 5 / 3.7 7.5 / 5.5
Grinding spindle speed Rpm 1440
Standard Grinding wheels (D x W x B) mm 300 x 20 x 76.2 300 x 25 x 76.2 300 x 40 x 76.2 300 x 50 x 76.2 350 x 50 x 127
GENERAL
Total Power H.P / Kw 13 / 9.7 15 / 11 18 / 13.5 24 / 18
Net weight of Machine (Approx.) Kgs. 2800 3400 4550 5600 7050
Gross weight of Machine (Approx.) Kgs. 3900 4500 5250 6300 8100
