Shaping Machines

We are Authorised Dealer, Supplier, Service Provider of Shaping Machines, Heavy Duty Shaping Machines, and our set up is situated in Pune, Maharashtra, India.

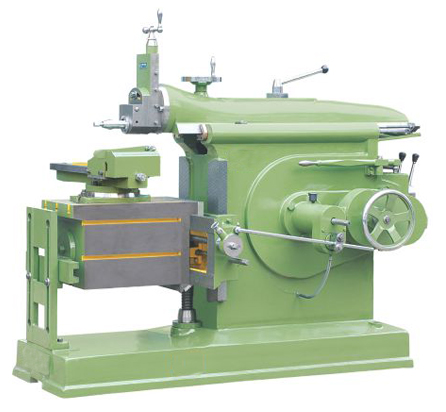

Shaping Machines

Technical Features
  •  Heavily Cross ribbed robust and the heavy built construction ensures vibration-free working.
  •  The machine is designed which helps to increase production, precision, performance, and deep cut.
  •  Fully hand scrapped.
  •  The double jack system saves the time from digging of pits
  •  The clutch is at a perfect reach of the operator.
  •  Screws, shafts, and other steel parts are made up of the specially selected alloy.
  •  To eliminate slippage the machine provide ring-type clutch drive in all geared machines
  •  Graduated Total Slide spinning at 90 degrees either way.
  •  Padam Shapers are best for deep cut-high metal removal with accuracy.
  •  The shaping machines are compact and accurate.
Standard Accessories
  •  Swiveling vice.
  •  Automatic oil lubrication pump.
  •  Motor pulley
  •  Instruction and maintenance manual.
Extra Accessories
  •  Electric motor
  •  Dol starter
  •  Keyway cutting attachment
  •  Automatic tool lilting device
  •  Automatic feed to the tool slide
  •  Rapid feed system with the control panel.
  •  Allen key set. v-belts, crank handle, spanner set, screwdriver oil can. toolbox.

Specifications of Shaping Machine
Model
S - 12
S - 18
S - 24
S - 30
S - 36
S - 42
A-CAPACITY
12"
18"
24"
30"
36"
42"
Length of Ram Stroke
305 mm
457 mm
610 mm
3762 mm
915 mm
1070 mm
Length of Ram
660 mm
960
1232
1410
1651
2108
Length of Width Ram Bearing
520x203
700x270
867 x 300
1020x330
1130 x 330
1600 x 330
Max. & Min. Distance
From Table of Ram
257 x 40
360 x 75
450 x 76
510x75
565 x 102
600 x 102
B-TABLE
Working Surface of Table
305x203
457x305
610 x 370
762 x 390
915 x 457
1078 x 533
Max. Table Travel Horizontal
330
488
635
787
940
1075
Max. Table Travel-Vertical
140
330
380
450
525
585
Angular Movement of Table
on Either Slides
60 L 60 R
60 L 60 R
60 l 60 R
60 l 60 R
60 L 60 R
60 L 60 R
C-TABLE
(Max Vertical Travel of Tool Slide)
140
152
190
203
255
300
Maximum Swivel of Tool Head
60 L 60 R
60 L 60 R
60 L 60 R
60 L 60 R
60 L 60 R
60 L 60 R
E-SPEEDS& FEEDS
Dia of Clutch Pulley
235
311
311
311
380
380
Range of Ram Speeds
4
4
4
4
4
4
(Stroke Per Minute)
22,36,52,78
16,32,64,96
14,28,42,62
8,16,32,48
10,20,30,50
8,16,32,48
Dia of Motor Pulley
51
70
70
76
88
88
Range of Table Feed Per
Stroke of Ram
0.220
0.220
0.229
0.229
0-22 To 0-88
0-22 To 0-88
Range of Tool Head Feed
hand feed
hand feed
hand feed
hand feed
hand feed
hand feed
Automatic Tool Head Feed &
Tool Lifting
on order
on order
on order
on order
on order
on order
F- DRIVE ELECTRICAL EQUIPMENT
Power Supply
1 hp (.75 kw)
2 hp (1.5 kw)
3 HP (2.25 kw)
5 HP (3.75 kw)
7.55 HP (5.kw)
10HP (7.5kw)
Speed Rpm
960 RMP
960 RMP
1440 RPM
960 RPM
960 RPM
960 RPM
Main Switch Starter (Push Button Type)
3.5 AMP
3.5 AMP
5 AMP
5 AMP
5 AMP
3.5 AMP
Weight (approx.)
650 kgs.
1200 kgs.
1850 kgs.
2300 kgs.
3500 kgs.
4000 kgs.
