We are Authorised Dealer, Supplier, Service Provider of All Geared Heavy Duty Lathe Machines, and our set up is situated in Pune, Maharashtra, India.

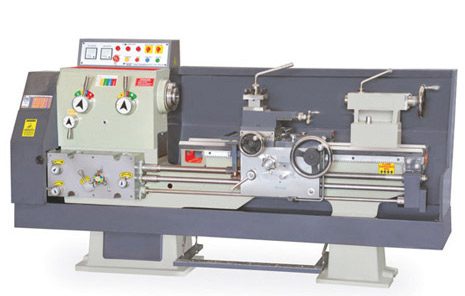

AH-267, AH-304

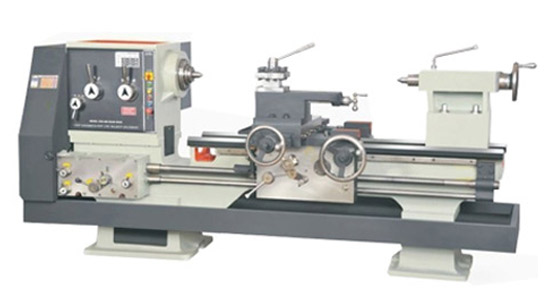

AEH-406, AEH-508
Model » | AH-267 | AH-304 | AEH-406 | AEH-508 | |||||||
Type Of Bed | Hardened Bed ways | Hardened Bed ways | Flat & V Guide Ways With Gap | Flat & V Guide Ways With Gap | |||||||
Height of Centre |
|
|
406 m.m | 508 m.m. | |||||||
Swing Over Bed |
|
|
785 m.m. | 985 m.m. | |||||||
Swing Over Cross Slide |
|
|
500 m.m. | 675 m.m. | |||||||
Swing in Gap |
|
|
1150 m.m. | 1200 m.m. | |||||||
Width of Bed | 325 m.m. | 375 m.m. | 457 m.m. | 558 m.m. | |||||||
Length of Gap in Front of Face Plate | 200 m.m. | 200 m.m. | 200 m.m. | 250 m.m. | |||||||
No. of Spindle Speed | 12 | 12 | 9 | 9 | |||||||
Spindle Speeds Range | 30 – 1060 R.P.M. | 30 – 1060 R.P.M. | 19 – 310 R.P.M. | 19 – 310 R.P.M. | |||||||
Taper in Spindle Sleeve | MT – 6 | MT – 6 | MT – 6 | MT – 6 | |||||||
Spindle Bore | 50 m.m. | 79 m.m. | 100 m.m. | 100 m.m. | |||||||
Spindle Nose | A2-6 Type | A2-8 Type. | A2 – 8 Type | A2 – 8 Type | |||||||
No. of British Threads | 44 | 44 | 43 | 43 | |||||||
Range of British Threads | 2 to 60 T.P.I. | 2 to 60 T.P.I. | 2 to 60 T.P.I. | 2 to 60 T.P.I. | |||||||
No. of Metric Threads | 24 | 24 | 24 | 24 | |||||||
Range of Metric Threads | 0.5 to 15 m.m. | 0.5 to 15 m.m. | 0.5 to 15 m.m. | 0.5 to 15 m.m. | |||||||
No. of Feeds | 40 | 40 | 30 | 30 | |||||||
Range of Longitudinal Feeds | 0.066 to 2 m.m. / Rev. of Spindle | 0.066 to 2 m.m. / Rev. of Spindle | 0.2 to 3 m.m. / Rev | 0.2 to 3 m.m. / Rev. | |||||||
Range of Transverse Feeds | 0.0165 / Rev. of Spindle | 0.50 m.m. / Rev. of Spindle | 0.02 to 0.5 m.m. / Rev. | 0.02 to 0.5 m.m. / Rev. | |||||||
Lead Screw Diameter / Pitch | 38 m.m. / 4 TPI. | 38 m.m. / 4 TPI | 44.4 m.m. / 2 TPI | 44.4 m.m. / 2 TPI | |||||||
Tail Stock Spindle Diameter | 60.3 m.m. | 60.3 m.m. | 76 m.m. | 76 m.m. | |||||||
Taper in Tail Stock Quill | MT – 4 | MT – 4 | MT – 5 | MT – 5 | |||||||
Cross Slide Travel | 270 m.m. | 305 m.m. | 400 m.m. | 500 m.m. | |||||||
Compound Slide Travel | 145 m.m. | 200 m.m. | 225 m.m. | 225 m.m. | |||||||
Tail Stock Sleeve Travel | 180 m.m. | 180 m.m. | 260 m.m. | 260 m.m. | |||||||
Tool Post Square | 120 x 120 m.m. | 145 x 145 m.m. | 175 x 175 m.m. | 200 x 200 m.m. | |||||||
Tool Shank Size | 25 x 25 m.m. | 25 x 25 m.m. | 38 x 38 m.m. | 38 x 38 m.m. | |||||||
Suitable Electrical HP | 3 HP | 5 HP | 7.5 HP | 10 HP |
AH Series | ||||||||
Length of Bed | 2100 m.m.(7′) | 2740 m.m. (9′) | 3040 m.m. (10′) | 3650 m.m. (12′) | 4260 m.m. (14′) | 4850 m.m. (16′) | 5450 m.m. (18′) | 6050 m.m. (20′) |
Admit Between Centre | 1000 m.m. | 1600 m.m. | 1900 m.m. | 3100 m.m. | 3700 m.m. | 4300 m.m. | 5450 m.m. (18′) | 4900 m.m. |
AEH Series | |||||||||
Length of Bed | 2100 m.m.(7′) | 2740 m.m. (9′) | 3040 m.m. (10′) | 3650 m.m. (12′) | 4260 m.m. (14′) | 4850 m.m. (16′) | 5450 m.m. (18′) | 6050 m.m. (20′) | 6700mm (22′) |
Admit Between Centre | 700 m.m. | 1300 m.m. | 1600 m.m | 2200 m.m. | 2800 m.m. | 3400 m.m. | 4000 m.m. | 4600 m.m. | 5200 m.m. |
Standard Accessories
- Hardened bed ways
- Chuck back plate 1 no
- Centre adapter
- Dead centres 2 nos
- Tool Post Spanner
- Motor pulley
- Thread dial indicator
- Change gear set – 1 (For metric and inch both)
- Norton Gear Box
Optional Accessories
- Face plate
- Carrier plate
- Steady rest
- Follow rest
- Taper turning attachment
- Motorised coolant pump with tank and fittings
- Rear tool post with extended cross slide
- Chuck back plates (Extra)
- Electricals with Panel and Push Button Switches
- Electrical (Motor / Panel board Wiring / Push button switches / v-belt fittings)
Salient Features
- Head stock spindle are made by alloy steel & precision grinding.
- Our ultimate goal is to win the full satisfaction of our client and we are committed to the goal.
- All rotating parts are balanced.
- Head stock is very rigid & structural standard design.day it’s ordered 99% of the time.
- Easy Maintenance gear box design.
