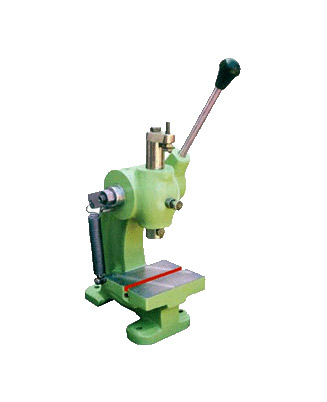

We are Authorised Dealer, Supplier, Service Provider of Spring Arbor Press, Spring Arbor Press Machines, and our set up is situated in Pune, Maharashtra, India.
Special Features
- The stroke is adjustable
- There is adjustable spring tensioning device
- Automatic spring return of spindle
- T - Slotted base surface
The press solid, hollow and eyelet reiveting, flatting numbering, marking, assembling etc. hence it is extremely useful in all light engineering industries be like electronic and electrical control equipment, domestic appliances, radios, battery cells, metering equipment, cycles, office equipments, ammunition, small tools automobile ancillaries etc.
MODEL NO. |
SAP - 0 |
SAP - 2 |
SAP - 2 |
|
Maximum Pressure Exerted |
Tons Kg. |
1/4 250 |
1/2 500 |
3/4 750 |
Center to Back |
Inch MM |
2 50 |
2.3/4 70 |
3.3/4 85 |
Minimum Height from Base to Guide |
Inch MM |
1.1/2 38 |
3.3/4 70 |
6.1/4 158 |
Maximum Height Arbour Plate to Guide |
Inch MM |
2.3/4 70 |
5.1/2 140 |
10.1/4 260 |
Size of Arbour Round or Square |
Inch MM |
1.1/8 28 |
1.3/8 35 |
1.1/2 38 |
Size of 'T' Slot |
Inch MM |
1/2 12 |
1/2 12 |
1/2 12 |
Hole in Ram |
Inch MM |
3/8 10 |
1/2 12 |
1/2 12 |
Approx Weight |
kg. |
15 |
25 |
45 |
