Light Duty Slotting Machines

We are Authorised Dealer, Supplier, Service Provider of Light Duty Slotting Machines, Slotting Machines, and our set up is situated in Pune, Maharashtra, India.

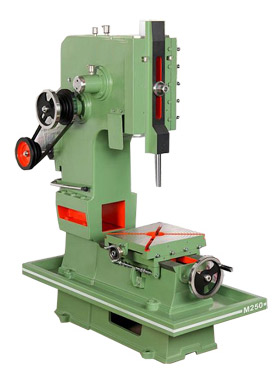

Slotting Machine Light

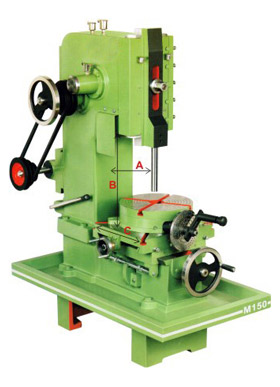

Slotting Machine Light
TECHNICAL DATA VSL-6 VSL-10 VSL-12
Adjustable Stroke 10 to 150mm 10 to 250mm 10 to 305mm
Longitudinal Movement 200mm 230mm 330mm
Cross Movement 110mm 230mm 150mm
Speed Adjuctment 3 Speed 3 Speed 3 Speed
Ram Adjustment 150mm 250mm 305 mm
Electric Motor 1 HP 1.5HP 2 HP
Weight (Approx.) 300 kg 400 kg 500kg.

Standard Accessories: Boring Bar, Motor Pulley, Counter V-Belt

Extra Accessories: Rotory Table with 36.1 Ration Diameter 250 mm., Electric Motor, Switch, True Chuck, V-Belt. All the parts shown in the photograph are not included in Standard Accessories.
