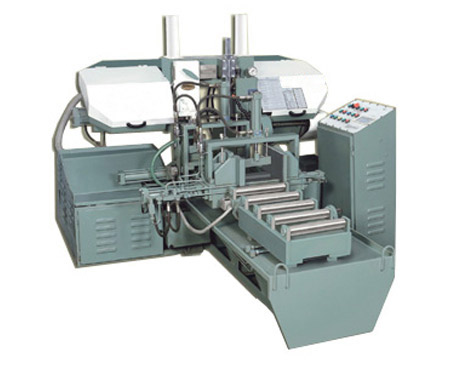

We are Authorised Dealer, Supplier, Service Provider of Fully Automatic Bandsaw Machines, and our set up is situated in Pune, Maharashtra, India.
Stadard Features & Accessories
- PLC control for all electric & hydraulic functions
- Shuttle Type Automatic job length feeding
- Floating shuttle vise for handling of bent job
- Automatic work height control & fast approach
- Power driven chip removal wire brush assembly
- Hydraulic Blade tension
- Split main vise for better gripping
- Idler wheel motion detector with blade stalling & breakage shut off
- Roller bearing / carbide wear pad blade guide system
- Bi metal bandsaw blade
Optional Accessories
- Bundle cutting attachment
- Chip conveyor
- Job roller stand
- Wire Brush
- Bi-metal bandsaw blade
- Variable vise pressure for thin walled job
- Centralized lubrication system
- A. C. drive for Infinitely variable speed control
Specification |
BFA - 241 DC |
BFA - 301 DC |
BFA - 421 DC |
BFA - 531 DC |
Cutting Capacity Round & Square (mm) |
240 | 310 | 421 | 531 |
Blade Dimensions (mm) |
3760 x 27 x 0.9 |
4100 x 34 x 1.1 |
5450 x 41 x 1.3 |
6900 x 54 x 1.6 |
Blade Linear Speed (mtr / min) |
20 / 30 / 40 / 50 / 75 |
20 / 30 / 40 / 50 / 75 |
20 / 30 / 40 / 50 / 75 |
20 / 30 / 40 / 50 / 75 |
Power Req. (kw/h.p.) Saw Drive (440 V AC, 50 Hz, 3Phase) Hydraulic Drive Coolant Pump Wire Brush Motor |
1.5 / 2.0 / 1400 RPM 0.75 / 1.0 / 1440 RPM 0.12 / 0.16 2800 RPM 0.18 / 0.25 / 1440 RPM |
2.2 / 3.0 / 1440 RPM 0.75 / 1.0 / 1440 RPM 0.12 / 0.16/ 2800 RPM 0.18 / 0.25 / 1440 RPM |
3.7 / 5.0 / 1440 RPM 0.75 / 1.0 / 1440 RPM 0.12 / 0.16 / 2800 RPM 0.18 / 0.25 / 1440 RPM |
5.5 / 7.5 / 1440 RPM 0.75 / 1.0 / 1440 RPM 0.12 / 0.16 / 2800 RPM 0.18 / 0.25 / 1440 RPM |
Hydraulic Tank Capacity (Ltr) |
80 |
80 |
80 |
80 |
Coolant Tank Capacity (Ltr) |
80 |
80 |
80 |
80 |
Shuttle Bar Feed Stroke (mm) |
350 |
350 |
350 |
|
Bundle Cutting W x H mm (*Optional) |
210 x 150 |
300 x 150 |
421 x 150 |
|
Apx. Dimensions (L x W x H) mtr. |
2 x 2.5 x 1.3 |
2.3 x 2.5 x 1.3 |
2.5 x 3.5 x 1.7 |
3.3 x 3.9 x 2.3 |
Apx. Weight (kg) |
1900 |
2200 |
2500 |
4000 |
